Rendering object bounds (Bounds2AltObj)

An alternate object can render the bounds of the connected object. You do this by using an alternate object whose modes is set to render bounds. This is the default configuration for the alternate object that is contained inside the Graphic Display kit's DataObject component.

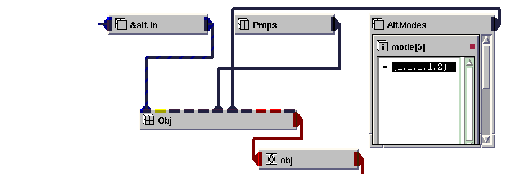

The following diagram, which shows how to do this, is taken from the Bound1AltObj example that is found in Libraries.Examples.Graphics_Display. To see the objects shown in the network, maximize Read_Geom, maximize DataObject, maximize AltObject. Open AltModes, then open mode[5].
