Rendering some other data (DataAltObj)

An alternate object can render entirely different data, perhaps an axis glyph or a downsized version of the data. You do this by creating an alternate object with distinct data.

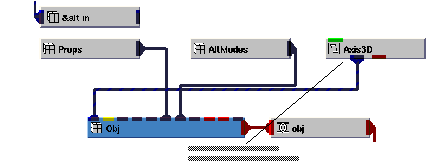

The following diagram shows how to connect an alternate object that renders a 3D axis glyph instead of the actual object when manipulating it.

This diagram is taken from the DataAltObj example that is found in Libraries.Examples.Graphics_Display. To see the objects shown in the network, instance DataAltObj, maximize Read_Geom, maximize DataObject and maximize AltObject.
