Synopsis
ErrorUI provides the Error window, which contains information about an SQL error resulting from an invalid SQL statement.
Input Ports
Error_offset link
Process_error link
Error_code link
Error_message link
Parameters
None
Output Ports
None

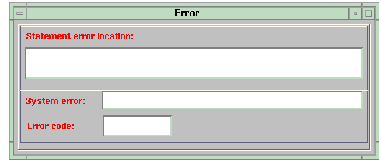

User Interface
Description
ErrorUI provides the Error UIwindow, which contains information about an SQL error resulting from an invalid SQL statement:
• an error-location string that consists of the invalid SQL statement with the following inserted as a marker at the point of error: ----->>
• The database-specific error message associated with the particular SQL error
• The SQL error code associated with the error
The Statement and Process_error input values are available from the relevant module in the application; for example, DBquery. The remaining values are available from the database-independent layer via the main communication area descriptor for the current SQL operation. The Statement, Error_offset, and Process_error values are passed to DBerrorString for processing into the error-location message; it and the SQL error message and code are provided to users in the Error window.
Input Ports
Statement
The current SQL statement, for which the SQL error was returned. It is passed to DBerrorString.statement.
Error_offset
The error-offset information: the number of bytes from the beginning of the statement where the error occurred. It is passed to DBerrorString.error_offset.
Process_error
The value 1, to initiate the execution of DBerrorString. It is passed to DBerrorString.process_error.
Error_code
The SQL error code associated with the error.
Error_message
The database-specific SQL error message associated with the error.
Parameters
None
Output Ports
None
