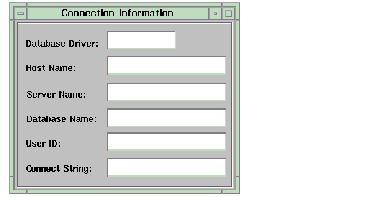

ConnectionUI provides the Connection Information window, which contains information about the current connection.
ConnectionUI provides the Connection Information window, which contains the following information about the current connection:
These values are obtained from the various fields of a connect_information group in another module in the same application. The module, in turn, obtains the values for connect_information fields from the database-independent layer via the connection descriptor for the current connection.
Note: This macro is intended as a template and, as a result, does not have input or output ports. The user is responsible for making the connections between this macro and the source of the data. To do this, the user must create the required input and output ports. See the Network Editor documentation in the AVS/Express User's Guide for details.
This UIwindow is used by the Query and Manipulate macros.
